POWER SECTOR MANUFACTURING
Ultra Accuracy tan d Meter
Maximum rating up to 1200 kV to test UHV Instrument transformers. High precision measurement features in Power Capacitor Quality Assurance. High resolution tan delta down to 1ppm with high accuracy measurement. When interfaced with range extension CT and High precision Standard capacitor the instrument has wide application among electrical testing of HV Power Appliances.
Rated Voltage Rated Current LT Power Capacitor Testing
Well trusted, highly rugged, very fast, on line Power Capacitor, Capacitance & tan d meter for final checking of LT power capacitors. High Accuracy meter serves almost all Power Capacitor Industries in India. Fully Automated system for man free operation is also available.
Rotating Machine C, tan D Meter
GST Mode testing is made direct, eliminating the stray capacitance. Only equipment in the universe, which directly measures capacitance & tan delta of grounded objects like motor, generator, transformer. Perfect equipment for testing generator of 27 kV class even up to 40 kV.
Drying Process Judgment of Coil in Oven
LT Capacitance & tan D meter can be used for deciding about the drying condition of coil during the manufacturing of coil for Power Transformer.
LCR Meter Impedance Analyser
Resolution of Surge Comparator as per IEC Rating up to 5kV, Coamrison with Standard Waveform Automatic Detection of PDIV and PDEV
Digital Partial Discharge Analyzer DAC-PD-9
Wide application partial discharge test system for Testing Power Cable, Transformer, Rotating Machines. Narrow and Broad band selection, Qmax, PPS etc. Digital Sampling , Free selection of frequency band, Identification of PD source, Pulse Polarity are unque features.

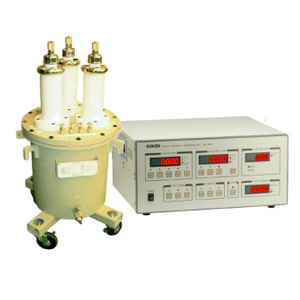

Insulation Material Tandelta Bridge
Resolution of The set, DAC-IM-D6, measures capacitance and the dielectric loss tangent (tan d) of electrical insulating materials with a resolution of 1 ppm (1 × 10-6). It allows measurement of tan d of liquid, film, paper, electric tape, insulating plate and other items with use of liquid, sheet or other appropriate electrodes for the sample materials under test in accordance with the IEC (60247, 60554-2) and JIS (C2101) Standards. The set also allows measurement of capacitance simultaneously with tan d and thus, it provides dielectric constant measurements of materials.

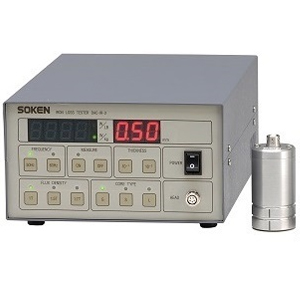

Silicon Steel Sheet Tester
Iron Loss Tester, Magnetic Flux, Magnetic Force, Watt Loss Tester, Eddy Current Loss, Iron Loss, Total Loss Graph, Hysterisis Loss Tester.
